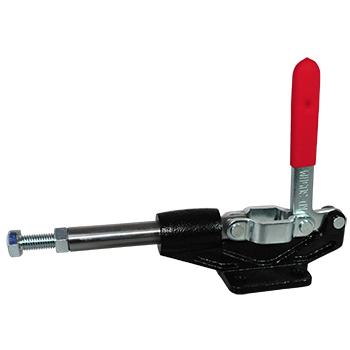

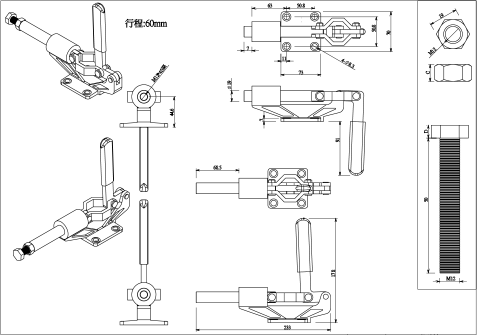

PushPull Type Toggle Clamp / KD-305H

Opening the watch details

Produce material

Model	Holding Capacity	Handle Moves	Bar Moves	Weight	Speicification	Part No.
KD-305H	680kg	90°	60MM	1416g	M121.550L	KDS12*50L
FLANGED CAST BASE
