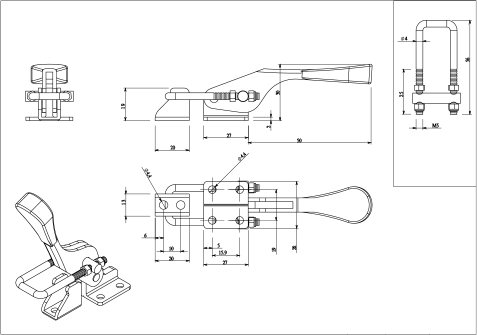

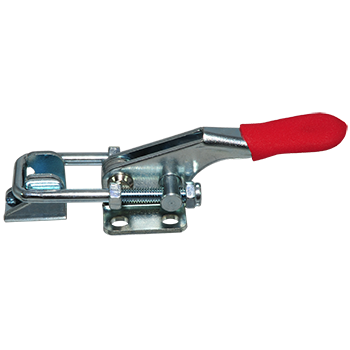

Latch Type Toggle Clamp / KD-40323

Opening the watch details

Produce material

Model	Holding Capacity	Handle Moves	Bar Moves	Weight	Speicification	Part No.
KD-40323	163kg	90°	0M/M	76g	M5*57L	KD40323A
FLANGED BASE
