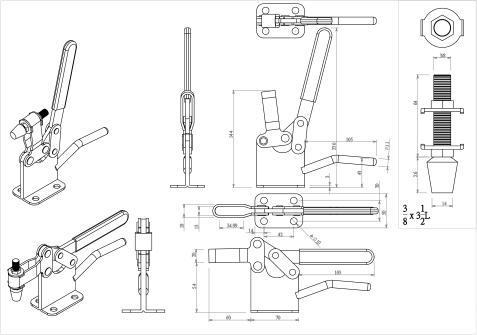

Horizontal Handle Toggle Clamp / KD-220WH

Opening the watch details

Produce material

Model	Holding Capacity	Handle Moves	Bar Moves	Weight	Speicification	Part No.
KD-220WH	400kg	85°	84°	830g	3/8-16*4"1/2	KDF-38412
U-BAR , HIGH FLANGED BASE
